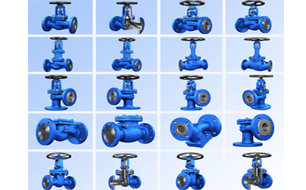

ETM products including: DIN Standard bellows sealed stop valve (Straight-Through Type) DIN Standard Bellows Seal Stop Valves (Angle Type) DIN Standard Long Life-Heavy Duty Bellows Sealed Stop Valves DIN Standard Gland Packing Globe Valves ( Straight-Through Type) DIN Standard Gland Packing Globe Valves (Angle Type) DIN Standard F4 Gate valves (Length acc.to DIN EN 558-1,face to face series 14 ) DIN Standard F5 Gate Valves (Length acc.to DIN EN 558-1,face to face series 15) DIN Standard F7 Gate Valves (Length acc.to DIN EN 558-1,face to face series 26) DIN Standard Swing Check Valves (Length acc.to DIN EN 558-1,face to face series 48 & series 1) DIN Standard Lift Check Valves DIN Standard Y Type Strainer
>> Learn More
ETM DIN Standard Bellows Seald Stop Valves are zero emission and maintenance free. An uninterrupted metallic barrier is positioned between the piping and the environment. The components that during valve operation are subject to relative movements are welded onto the extremities of a metallic bellows that absorbs and compensates the shifting. Hence these valves are suitable for any fluid and are recommended when zero emission characteristics are required to protect the environment and the health of the workers from pollutive leaks, to prevent expensive wastes due to loss of energy and fluid, and to eliminate the not negligible cost of replacement of the packing. In conclusion, the valves are particularly suitable for dangerous, inflammable,lethal and explosive media.
High temperature stainless steel, High chromium stainless steel, Hastelloy, Inconel, Pure nickel, Titanium, Other special alloys Connections:Flanged ends, Butt welding ends, Socket welding ends, Threaded ends, Other requirements Operation:Handwheel, Lever, Chainwheel, Gear operator, Pneumatic piston actuator, Pneumatic diaphragm actuator, Electric actuator Globe Valve / Applications: Industry, power stations , flue gas purification plant, processing technology, gas supply, vapour facilities, recycling facilities, vacuum facilities, hot water, heating technology, district heating, thermal oil applications, general plant manufacturing, etc.

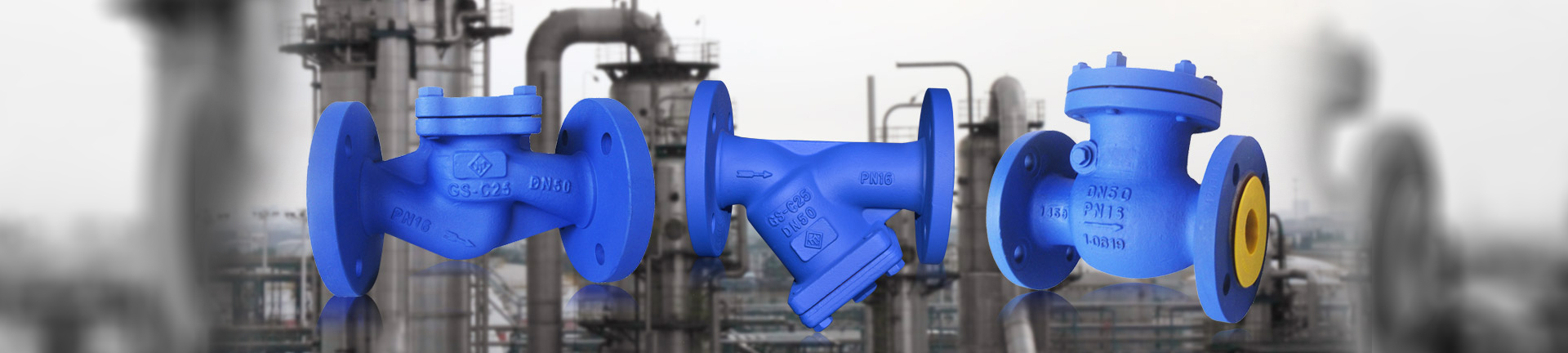

Y-Strainer / Applications: Industry, power stations , flue gas purification plant, processing technology, gas supply, vapour facilities, recycling facilities, vacuum facilities, hot water, heating technology, district heating, thermal oil applications, general plant manufacturing, etc.
ETM DIN Standard Long Life Bellows Sealed Stop Valves are zero emission and maintenance free. An uninterrupted metallic barrier is positioned between the piping and the environment. The components that during valve operation are subject to relative movements are welded onto the extremities of a metallic bellows that absorbs and compensates the shifting. Hence these valves are suitable for any fluid and are recommended when zero emission characteristics are required to protect the environment and the health of the workers from pollutive leaks, to prevent expensive wastes due to loss of energy and fluid, and to eliminate the not negligible cost of replacement of the packing. In conclusion, the valves are particularly suitable for dangerous, inflammable,lethal and explosive media.
ETM DIN Standrad Gate Valves are primarily designed to start or stop flow, and when a straight-line flow of fluid and minimum flow restriction are needed. In service, these Valves generally are either fully open or fully closed.The wedge of a Gate Valve is completely removed when the Valve is fully open; the wedge is fully drawn up into the Valve Bonnet. This leaves an opening for flow through the Valve at the same inside diameter as the pipesystem in which the Valve is installed. The gate valve can be used for a wide range of Steam, gases, liquids,Oil etc.

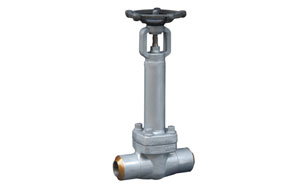

Bellows valve is a kind of valve that takes bellows as valve stem seal element. It is commonly used for application with strict valve stem sealing requirement, such as high vacuum application and nuclear industry. Replace stuffing box in common valve with bellows or use with stuffing box can make no leakage at valve stem part to prevent leakage of radioactive material or valuable material, or maintain a high vacuum. Bellows extends and retracts with lifting of valve stem. The maximum working pressure determined by compression strength and fatigue strength of bellows.
Bellows valve is a kind of valve that takes bellows as valve stem seal element. It is commonly used for application with strict valve stem sealing requirement, such as high vacuum application and nuclear industry. Replace stuffing box in common valve with bellows or use with stuffing box can make no leakage at valve stem part to prevent leakage of radioactive material or valuable material, or maintain a high vacuum. Bellows extends and retracts with lifting of valve stem. The maximum working pressure determined by compression strength and fatigue strength of bellows.
Bellows valve is a kind of valve that takes bellows as valve stem seal element. It is commonly used for application with strict valve stem sealing requirement, such as high vacuum application and nuclear industry. Replace stuffing box in common valve with bellows or use with stuffing box can make no leakage at valve stem part to prevent leakage of radioactive material or valuable material, or maintain a high vacuum. Bellows extends and retracts with lifting of valve stem. The maximum working pressure determined by compression strength and fatigue strength of bellows.
Bellows valve is a kind of valve that takes bellows as valve stem seal element. It is commonly used for application with strict valve stem sealing requirement, such as high vacuum application and nuclear industry. Replace stuffing box in common valve with bellows or use with stuffing box can make no leakage at valve stem part to prevent leakage of radioactive material or valuable material, or maintain a high vacuum. Bellows extends and retracts with lifting of valve stem. The maximum working pressure determined by compression strength and fatigue strength of bellows.
